FS1 First Time Use

First Strike FS1 meter

The following information shows you how easy it is to manually enter the required information.

Looking at the meter, you will see several numbers on the screen.

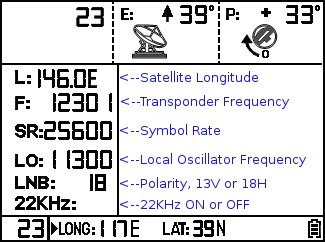

Screen shot FS1

1) First set your longitude and latitude. See the numbers at the bottom of the screen marked by LONG: and LAT:. You can find your longitude and latitude on Maps of World. Using the Option/Local key, move the cursor to the channel number on the bottom right of the screen. Hold the "0" key for 3 seconds and the cursor will move to the LONG: allowing you to enter your longitude. Press the Option/Local key to move to the LAT: setting. Once both are set, press and hold the "0" key for 3 seconds to save it and exit. You can find detailed instructions on page 9 of the manual.

2) Now fill in the remaining parameters. You can find the information you need at Lyngsat.

L: is Satellite Longitude
F: is Transponder Frequency
SR: is Symbol Rate
LO: is Local Oscillator Frequency of your LNBF
LNB: is the polarity determined by 13 or 18 volts
22KHz: is for setting the LO frequency in universal LNBFs.

Once everything is properly set, you can press the Save/C key to save it.

3) Now you are ready to find the signal. Make sure your cursor is in the channel number box (bottom left). Press any number key to activate the signal test mode. Start swinging your dish in the direction of the satellite. As you get close to it you will hear a tone from the meter and Strength and Quality measurements will start to show. Move the dish slowly right or left and up or down to maximize the signal. Once the signal is as high as you can get it, carefully tighten your dish.

The First Strike FS1 meter has 227 satellites from around the world preloaded. See page 13 of your users manual for information on how you can easily use these preloaded settings.
