First Strike Meters

Satellite Finder FS1-ProHD

When it needs to be done right the first time!
Fast, accurate, dependable!

First Strike FS1-ProHD satellite meter

Features

  • DVB-S2 compliant
  • 320x240 resolution color LCD
  • Unique TimeMachine measurement
  • Spectrum analysis with access to specific transponder
  • Use spectrum to save satellite data through "blind scan"
  • Mini-USB driver free interface
  • DiSEqC Switching
  • Powerful Li-ion battery
  • Faster reaction speed
  • May be powered by STB
  • Built-in global satellite data
  • USB communication port
  • PC managing software
  • DragUpgrade Easy firmware upgrade

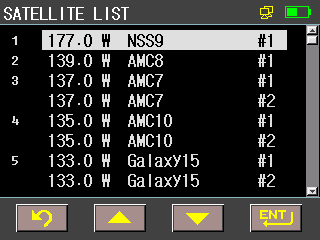

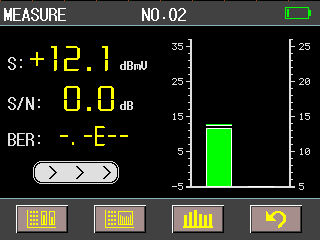

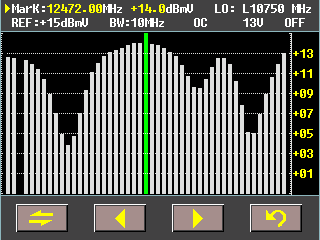

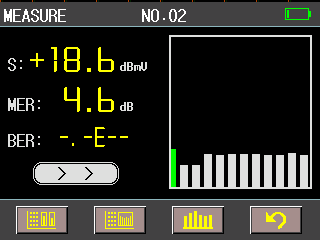

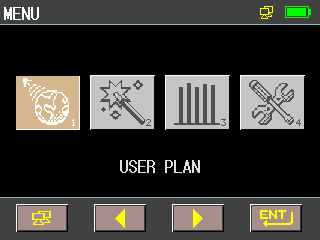

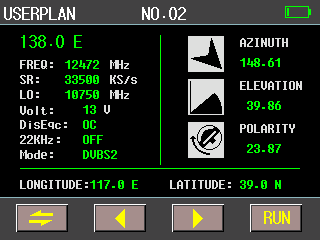

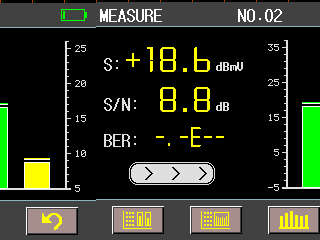

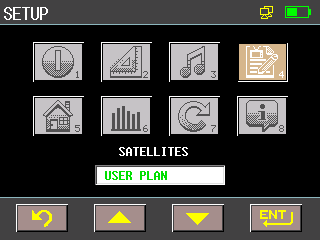

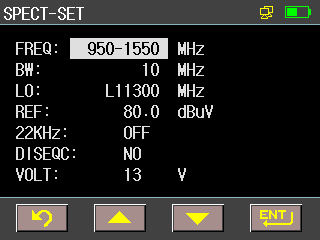

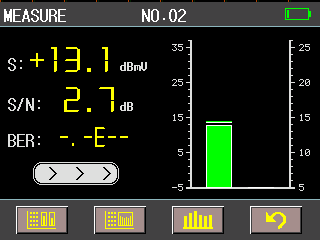

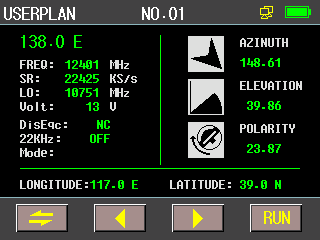

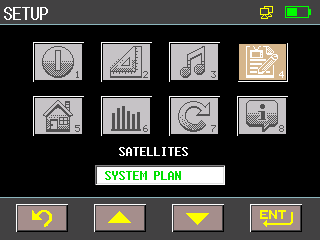

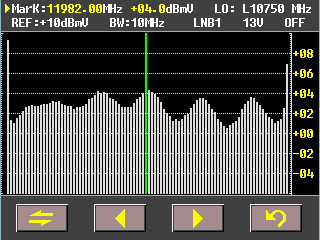

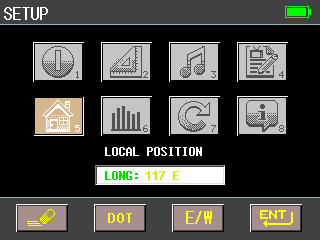

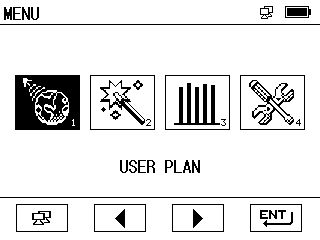

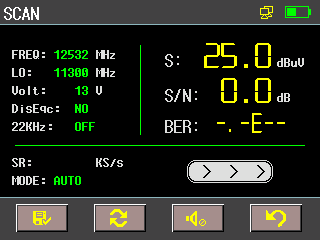

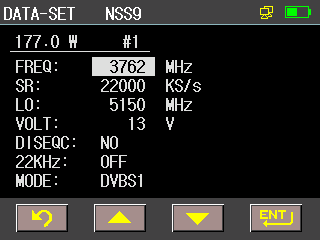

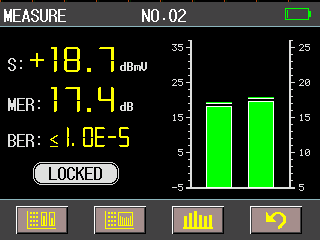

power on screen setup menu user plan setup satellite list data set spectrum set scan measure menu setup spectrum analyzer spectrum analyzer spectrum analyzer user plan test 1 test 2 test 3 test run test time machine user plan

FS1-ProHD Videos

Getting Started System Plan User Plan

Specifications

Technical parameters
Input frequency range: 950~2150MHz
Signal level range: -35dBmV~40dBmV
Measurement unit: dBmV; dBµV; dBm
Measurement accuracy: ±2dB Typical 25°C
Input resistance: 75Ω
Symbol rate: 2Msps-45Msps
Connector: F type
QPSK switch: Auto
22K control: supported
Audio output: speaker
Display resolution: 320x240 Color LCD
Signal Type: DVB-S, DVB-S2
Measurement: Signal level, S/N, MER, BER, Time Machine, Spectrum Analysis
Sprectrum Frequency Range: 950~1550 and 1550~2150
Spectrum sweep frequency bandwidth: 1 to 99MHz
Full span scan speed: About 8 seconds
Blind scan: Symbol rate, signal type
Memory content: Maximum 16000 user-defined satellites and transponders can be uploaded through PC
LNB Power Supply: 13V, 18V, 20V ≤500mA
PC Interface: Mini USB
Adapter power supply: AC100V-240V
Output port voltage: DC 12~23 Volts
Battery: 11.1V 1150mAH Li-ion
DC input: 13.5V/1A
Output port voltage: DC12-23V
Battery working time: 3~4 hours continuously after fully charged, varying from LNB current draw
Charging time: 4 to 6 hours
Working Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -10°C~50°C (14°F~122°F)
Dimensions: 142*82*35mm (5.59x3.23x1.38 inches)
Weight: 0.42Kg (0.926 pounds)
Gross weight: 1 Kg (2.2 pounds)

May not be exactly as pictured. We reserve the right to change the specifications at any time without notice.
